Arena Sports Lighting

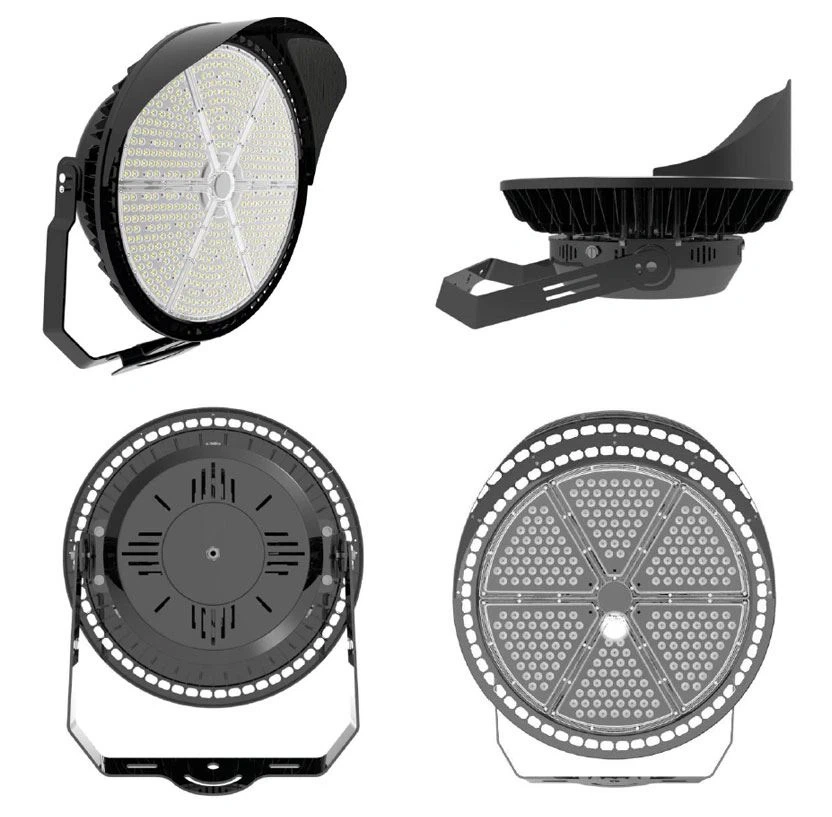

High power arena LED sports lighting .

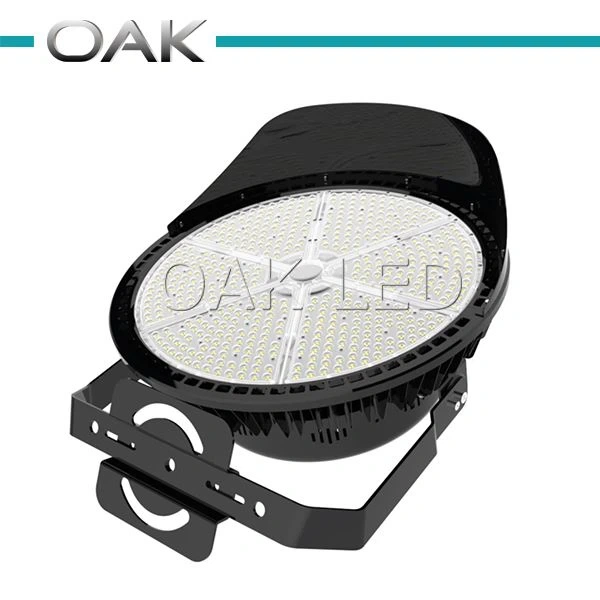

With 3030/5050 smd light source and legendary Meanwell driver, OAK LED SMD flood light is a milestone in the lighting industry.

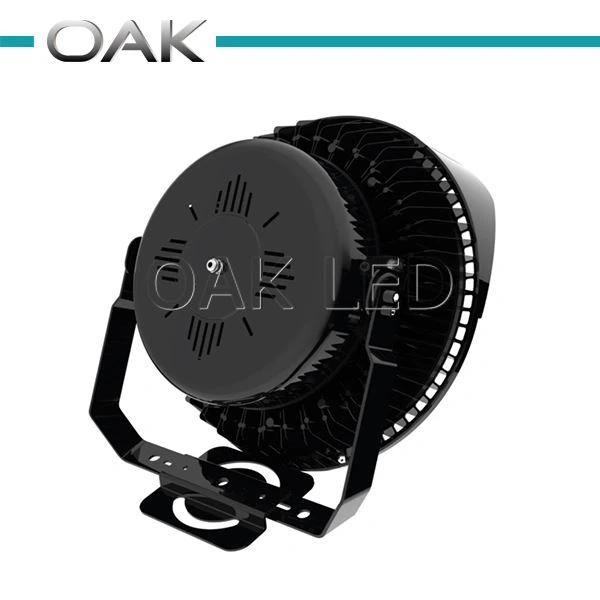

To optimize the cooling process, highly thermally conductive heat sink is integrated with the housing, and LEDs are in contact with the housing.
| 600W Arena LED Sports Lighting | |||
| MN | OAK-AL600 | Power Consumption | 600W |
| LED Type | 3030/5050 | Input Voltage | AC90-305V / AC200-305V |
| System Efficacy | 130 lm/W | Power Frequency | 50~60Hz |
| Luminous Flux | 78,000 lm | Power Efficiency | >95% |
| CCT | Typ. 2700-6500K | Power Factor | >0.93 |
| Beam Angle | 15, 30, 60 degree | Total Harmonic Distortion | <15% |
| CRI | >75 | IP Rating | 65 |
| System Efficiency | >95% | Junction Temperature(Tj) | <75℃(Ta=30℃) |
| Dimming Control | DALI, DMX, PWM, | Fixture Material | ADC12 aluminum housing |
| Zigbee optional | |||
| Luminaire N.W/G.W | 18.0kg / 20kg | Life Span | >80000Hrs |
| Outlook Dimensions | 652*565*205.5mm | Package Size | 685*615*245mm |
• With 3030/5050 smd light source and legendary Meanwell driver, OAK LED SMD flood light is a milestone in the lighting industry.
• To optimize the cooling process, highly thermally conductive heat sink is integrated with the housing, and LEDs are in contact with the housing.
This advanced convection cooling design allows the heat from LEDs to be dissipated far more effectively without sacrificing stability, ensuring over 50,000 hours lifespan and requiring zero maintenance.
• High quality ADC12 aluminum housing is capable of transferring the heat with simplicity and efficiency. This water-proof and dust-proof fixture has a rugged stylish aluminum housing with durable UV resistant powder coated finish that provides exceptional corrosion protection, and each light gets tested for 48 hours at the factory.
• It has been designed & tested to perform IP65 protection, guarding against damage done by harsh or wet weather condition.
• The fixture does not produce harmful U/V, lead, mercury or other toxic materials to promote respect for the environment. Design-minded innovation with intellectual property, practical and aesthetic patent portfolios, totally hassle-free.
