120W RGB LED Flood Light
High power 120W RGB LED Flood light, OAK-RGB120W.
Brightest LED lights in the world.
Premium Precise Optical Lighting System, 95% high efficiency.
IP66 waterproof, suitable for indoor and outdoor use.
Environmental proctection, no UV/ Hg and harmful substance
OAK-RGB-120W
RGB three chips (colors) in one package
Buit-in DMX 512 dimming, or External control
Using high brightness Bridgelux LED chip, high brightness and long lifespan
Accurate secondary optical design ensures the highest light requirements of artistic design of buildings
Good performance heatsink
Constant current driver, over voltage protection
Easy installation and maintenance
Efficient heat dissipation
Instant-on, no delay, no strobe effects
IP66 Waterproof can be used in all kinds of humidity surroundings
5 years warranty

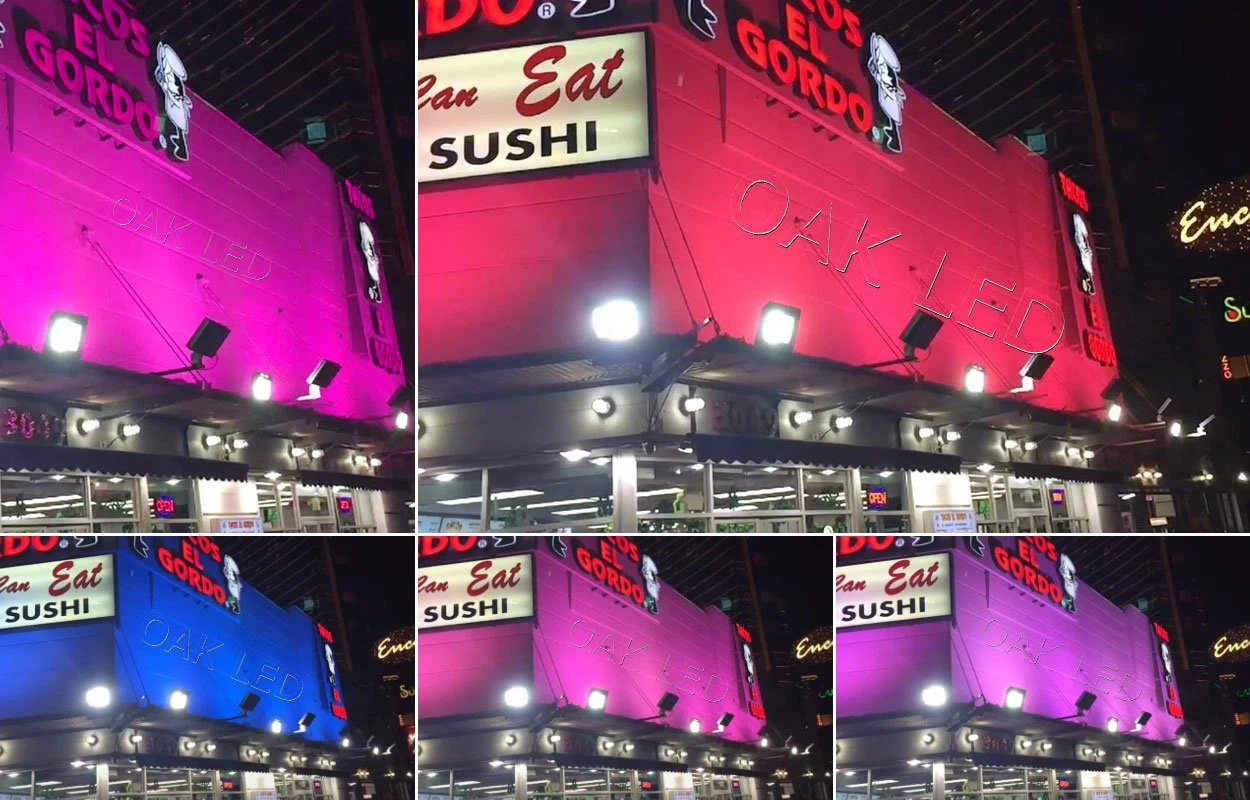

Mainly applied in outdoor flood lighting,building decoration,industry,sports center,outdoor stadium,port,parking lot,etc
Specifications
| MN | Power (W) |
Size (mm) |
Beam Angle |
Input voltage |
Dimming |
| OAK-RGB-120W | 120 | 318x255x70 |
15, 25, 40, |
100-305V AC |
PWM |
| OAK-RGB-160W | 160 | 318x320x70 | |||
| OAK-RGB-200W | 200 | 418x320x70 | |||
| OAK-RGB-240W | 240 | 402*377*132 | |||
| OAK-RGB-320W | 320 | 502*377*132 | |||
| OAK-RGB-400W | 400 | 602*377*132 | |||
| OAK-RGB-480W | 480 | 702*377*132 | |||
| OAK-RGB-720W | 720 | 702*497*132 | |||
| OAK-RGB-960W | 960 | 702x617x132 |
Parameters
| Model No. | OAK-RGB-120W | |
| Light Cource | Bridgelux | |
| Power | 120W | |
| Input Voltage | 90-305V AC | |
| Beam Angle | 15° /25° /40° / 60° / 90° optional | |
| IP Rating | IP67 | |
| Lifespan | >100,000h | |
| power Factor | ≥0.95 | |
| Power Efficiency | ≥93% | |
| Power Frequency | 50-60HZ | |
| Size | 340x100x180mm | |
| Wave Length | Red | 615-630nm |
| Green | 515-530nm | |
| Blue | 465-480nm | |
Reference
