LED High Mast Light
LED High Mast Light. Cree COB from USA original. In-built Meanwell drivers. Special thermal system to increase heat dissipation and extend lifespan. 300W OAK LED High Mast Light can directly replace 1000W-1500W MH/Halogen lamps. 5 years warranty.
LED High Mast Light

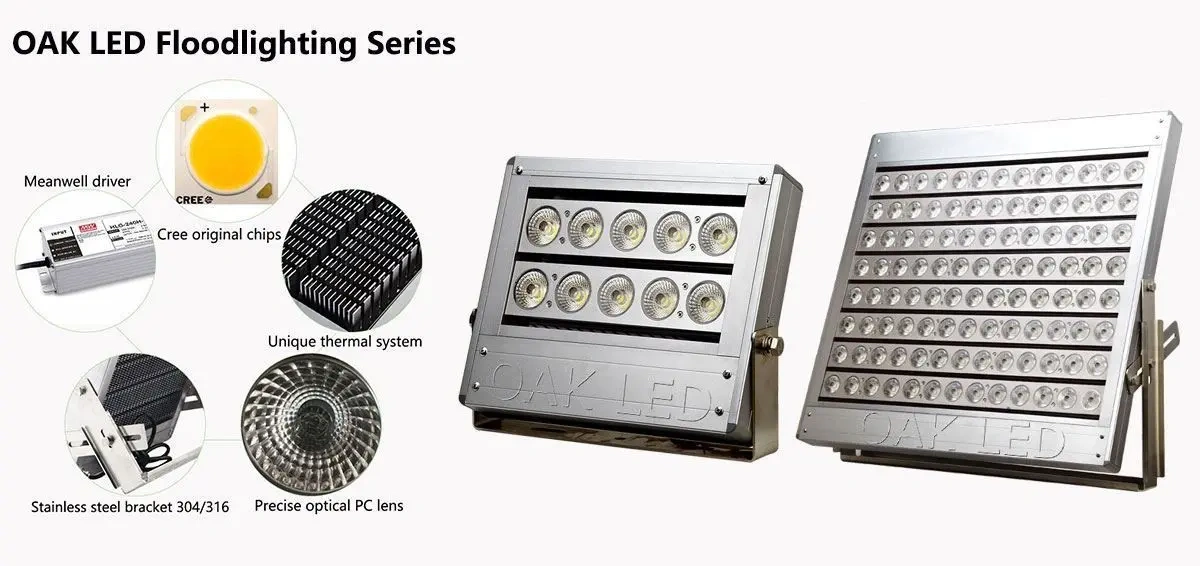

● Cree COB from USA original.
● In-built Meanwell drivers.

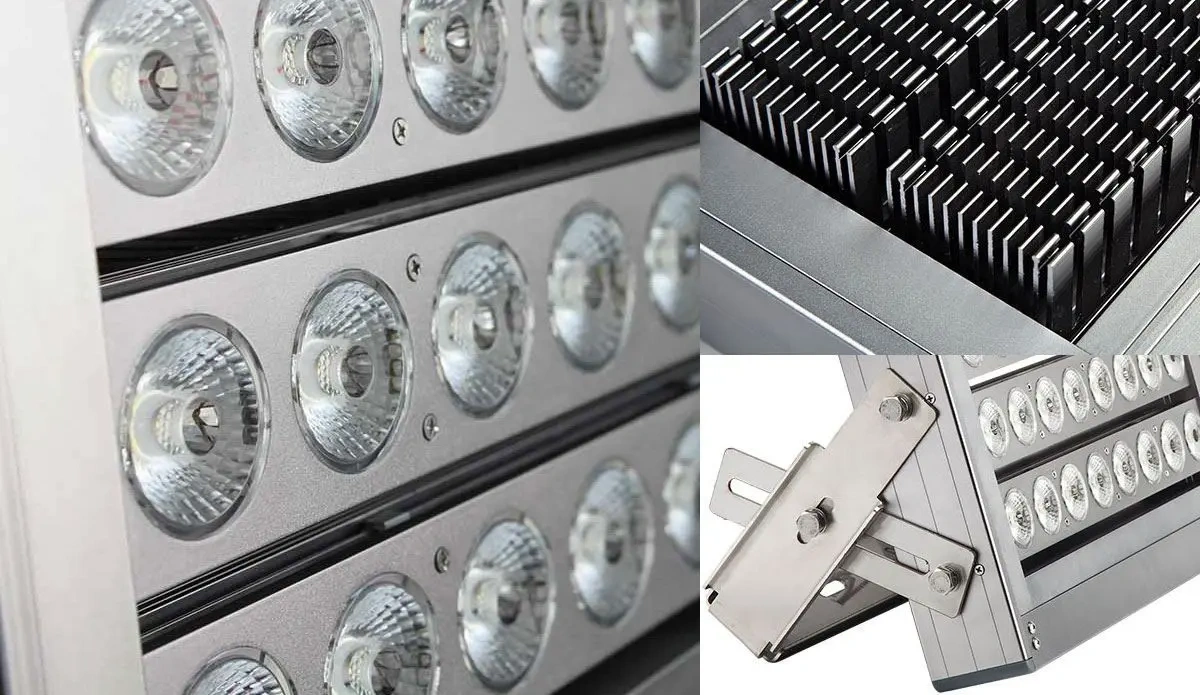

● Special thermal system to increase heat dissipation and extend lifespan.
● 300W OAK LED High Mast Light can directly replace 1000W-1500W MH/Halogen lamps.
● 5 years warranty

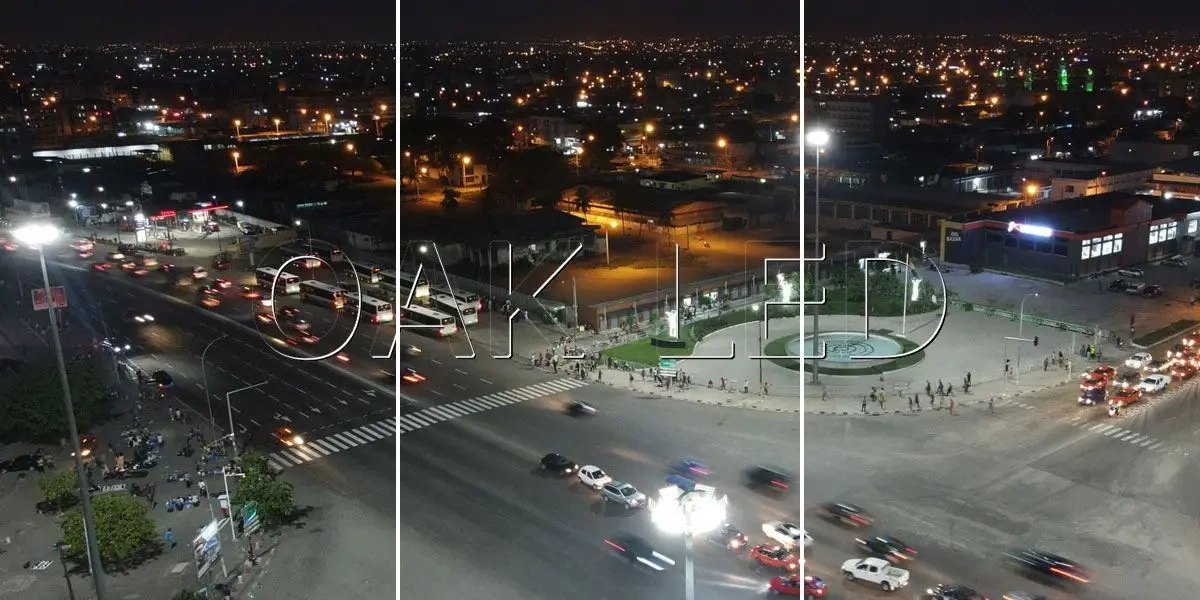

Project References

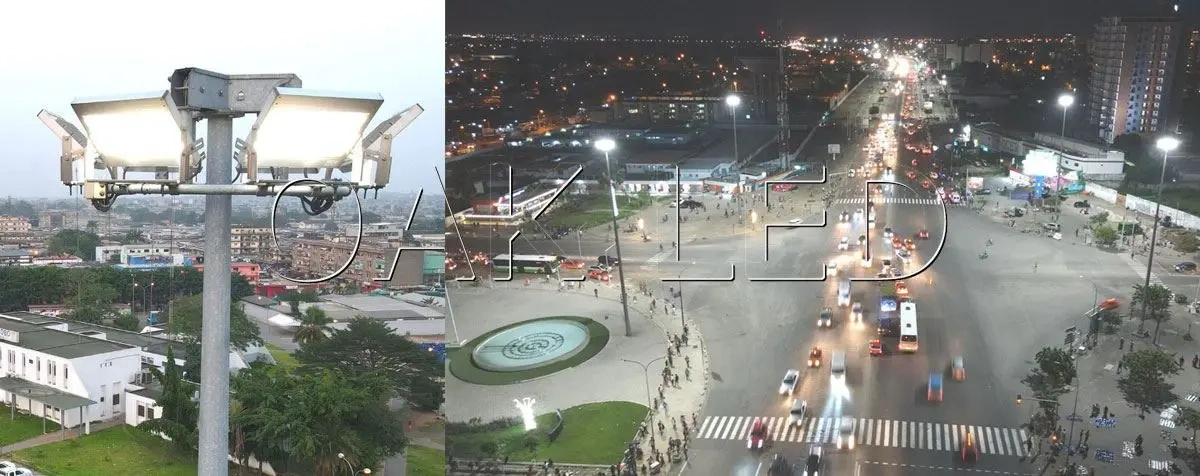

30m high mast lighting
Technical data
| MN | Power (W) |
Size (mm) |
Efficiency | Beam Angle (degree) |
Color Temperature |
Dimming Options |
| OAK-FL-100W-Smart | 100 | 318x255x70 | 170lm/w | 15, 25, 40, 60, 90, 120 |
2700-6500K | PWM DALI DMX Zigbee Manual |
| OAK-FL-150W-Smart | 150 | 318x320x70 | ||||
| OAK-FL-200W-Smart | 200 | 418x320x70 | ||||
| OAK-FL-300W-Smart | 300 | 468x436x70 | ||||
| OAK-FL-400W-Smart | 400 | 568x436x70 | ||||
| OAK-FL-500W-Smart | 500 | 568x501x70 | ||||
| OAK-FL-600W-Smart | 600 | 568x566x70 | ||||
| OAK-FL-720W-Smart | 720 | 668x566x70 | ||||
| OAK-FL-800W-Smart | 800 | 668x631x70 | ||||
| OAK-FL-1000W-Smart | 1000 | 718x696x70 |
Descriptions
Why OAK LED food lights are the best Choice of high mast tower
1. Power & Lux Level (Brightness) Calculation
LED high mast lights are installed at a height of at least 100 feet. In general, it will take 300 to 500 lux for recreational sports field, and 50 to 200 lux for airport apron, harbour and outdoor industrial areas.
We can offer accurate and complete photometric analysis.
2. High Lighting Uniformity for Better Coverage
The best high mast lighting systems should provide high uniformity lighting.
We offer you a free DiaLux design according to flood planning and lighting requirements, so you can always get the best lighting system for a high mast tower.
3. Anti-glare
Anti-glare lighting reduces the dazzling effect. Blind lights can increase reaction time and cause catastrophic consequences.
Our high mast lights are equipped with a built-in anti-glare lens that reduces glare by 50-70% for added security and user experience.
4. Color Temperature
OAK LED high mast light has wide range CCT from 1700K to 100,00K. The yellow light looks more comfortable.
However, white light allows us to see the true color of the object. Depending on your needs and application, we will help you choose the right color temperature.
5. Avoid light pollution
Significant light scattering and reflection can cause light pollution and affect neighboring residential areas.
Our LED high mast lights feature high quality optics and lighting to minimize light pollution.
Precise luminaire positioning and special accessory like the shield or barndoor prevent the beam from propagating to unwanted areas.
High mast light is the heaviest lighting system, and must have the strength and resistance needed to survive the most challenging outdoor environments.
OAK led high mast lights provide large-area lighting with the largest pole pitch makes tall mast lighting suitable for a variety of applications, such as airports, ports, highways, highways, transportation hubs, high mast parking lot, and sports fields, are the best choice to illuminate large outdoor spaces that require high quality lighting.
