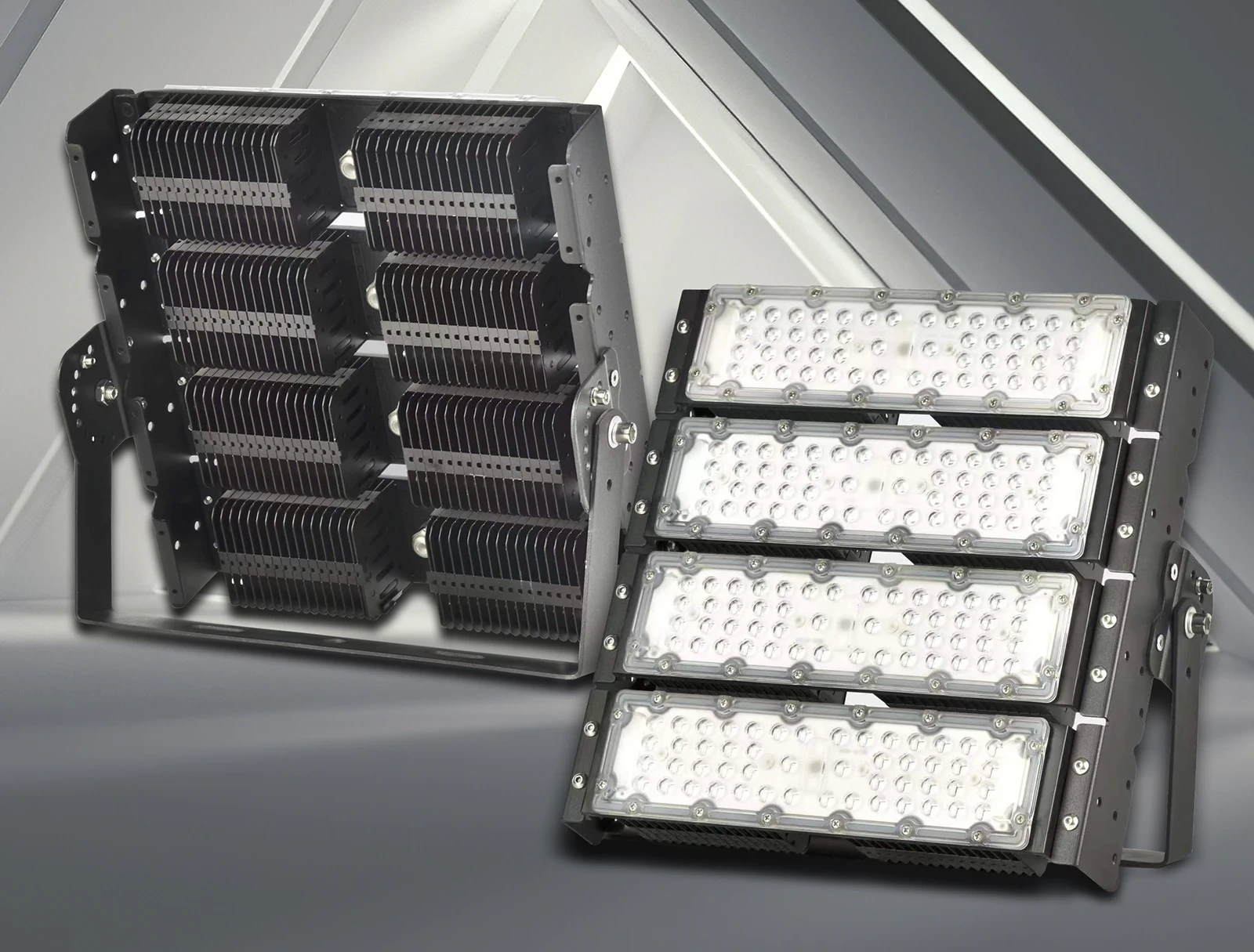

SMD LED Flood Lights
SMD LED Flooding Lights are excellent for business outside usage, supplying remarkable brightness, energy performance, and durability.
These water proof lights sustain extreme climate and are perfect for lighting up big rooms like parking area and enterprise zones.
They supply top-tier performance, eco-friendliness, and cost-effectiveness, making them the very best option for outdoor lighting solutions.
● Bridgelux 3030 chips;
● Meanwell ELG series driver
● 5 years Warranty

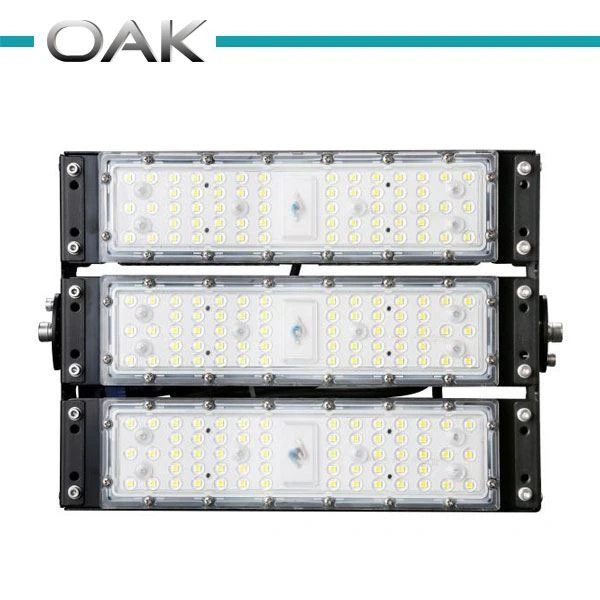

● Modular design, beautiful appearance.
Adopting die-casting aluminum alloy, this SMD LED flood light feature a robust body and lightweight, as well as good heat dissipation.
Our SMD LED flood lights use high efficiency SMD LED chips to produce high lumen output.

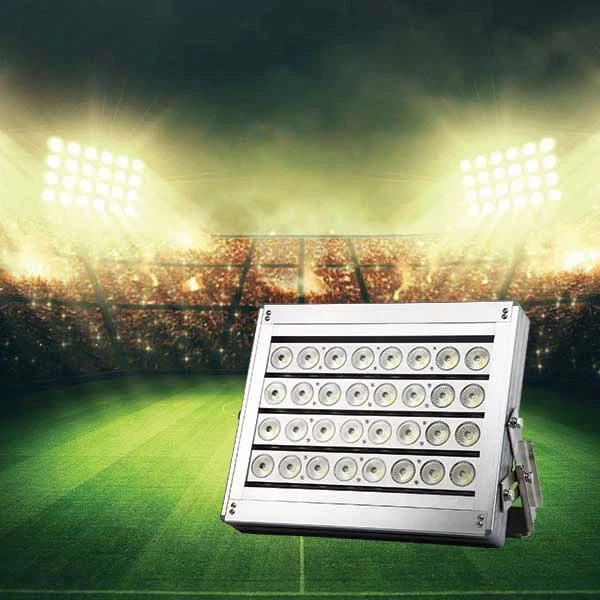

Suitable for different sports grounds, highways, driveways, pathways, parking lots, and other applications.
Technical data
| MN | Power (W) |
LED type/Qty | Efficiency |
Beam Angle |
Color |
Voltage & Frequency |
| OAK-SMD-FL-50W | 50 | Bridgelux 3030/60pcs |
135lm/w or 170lm/w |
24, 36, 60,90, |
3000K/ 4000K /5000K |
AC 200-305V |
| OAK-SMD-FL-100W | 100 | Bridgelux 3030/120pcs | ||||
| OAK-SMD-FL-150W | 150 | Bridgelux 3030/180pcs | ||||
| OAK-SMD-FL-200W | 200 | Bridgelux 3030/240pcs | ||||
| OAK-SMD-FL-300W | 300 | Bridgelux 3030/360pcs | ||||
| OAK-SMD-FL-400W | 400 | Bridgelux 3030/480pcs | ||||
| OAK-SMD-FL-500W | 500 | Bridgelux 3030/600pcs | ||||
| OAK-SMD-FL-600W | 600 | Bridgelux 3030/720pcs | ||||
| OAK-SMD-FL-800W | 800 | Bridgelux 3030/960pcs | ||||

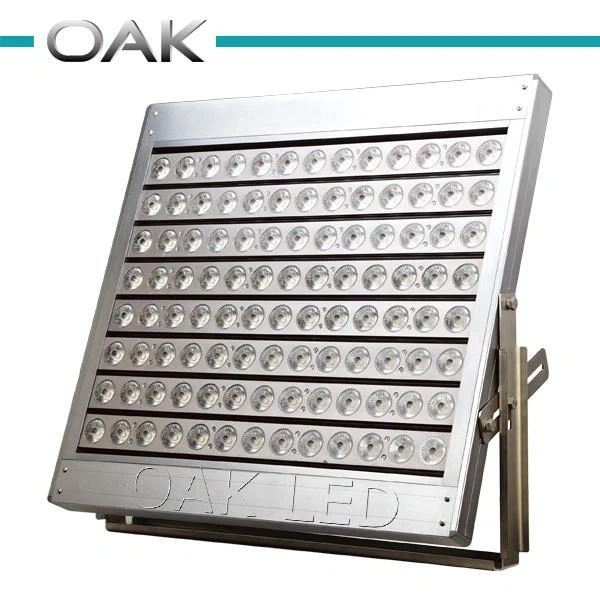

| OAK-SMD-FL-1000W | 1000 | Bridgelux 3030/1200pcs |
Features
1. Super bright & energy saving

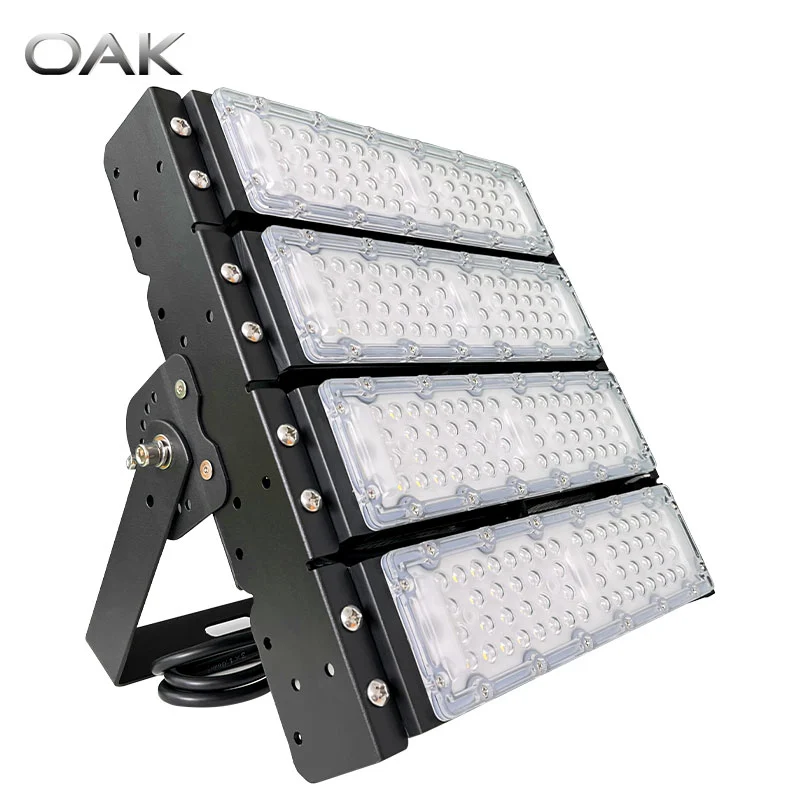

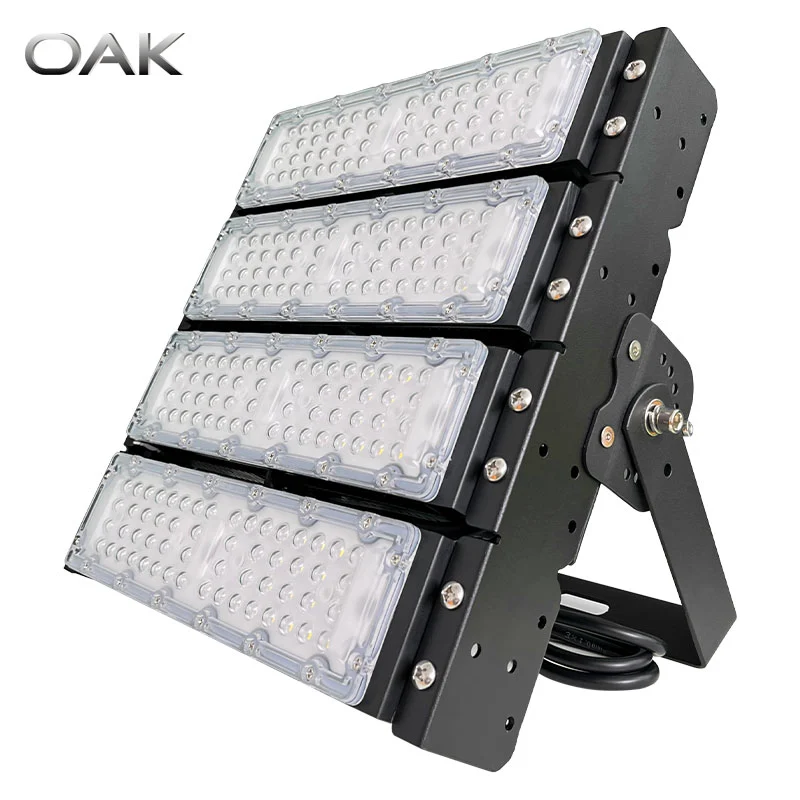

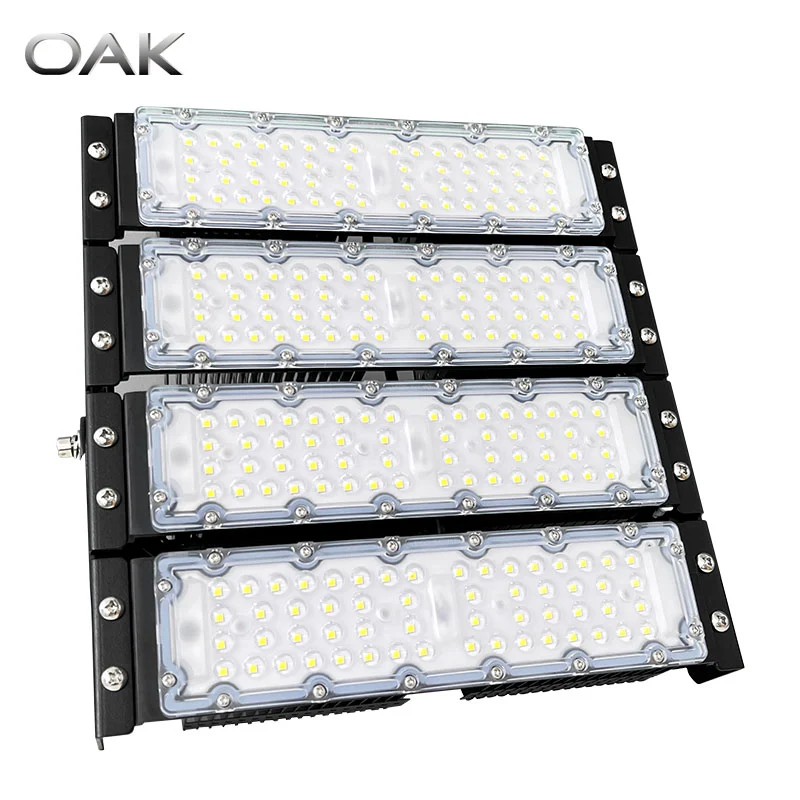

200W SMD LED flood lights include 4pcs light module, providing up to 27000lm high light output.
It is several times brightness higher than traditional light bulbs, which can save up to 80% electricity.
2. IP65 waterproof & different beam angle
With IP65 rating and unique optical concave-convex structure lens, this LED flood light can be widely used in outdoor and indoor lighting projects;
Different beam angles such as 150x70°, 140x100°, 24°, 36°, 60°, 90°are shadow-free and anti-glare, providing great bright light.

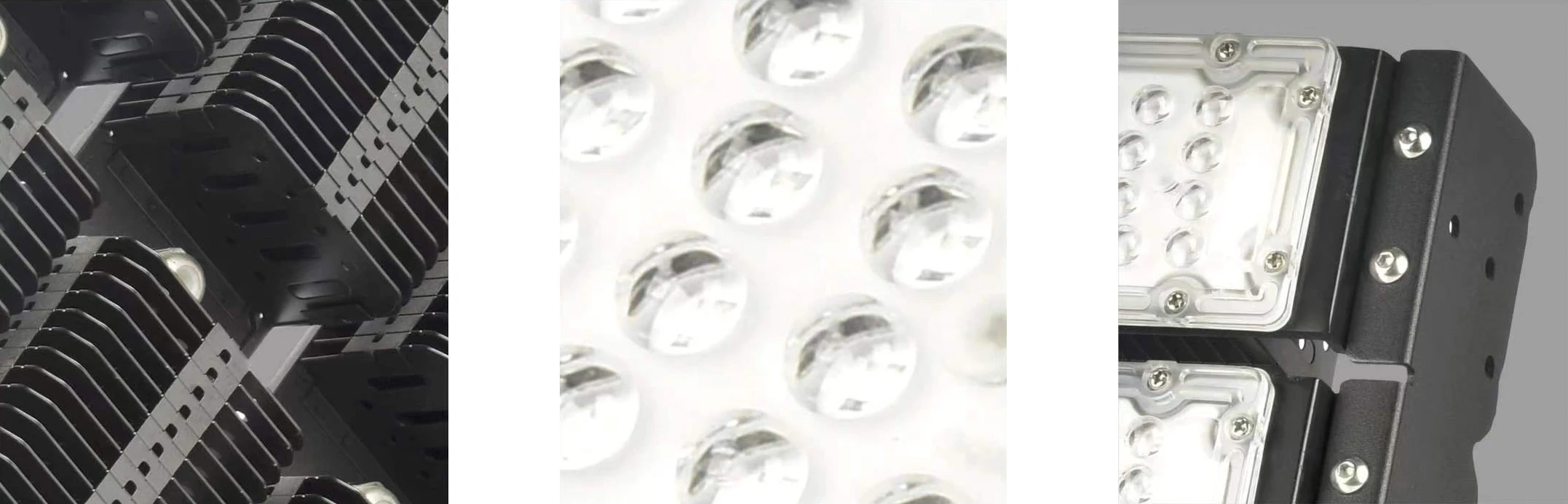

3. Durable material & excellent dissipation
The LED flood light outdoor are made of heavy duty die cast aluminum housing. The excellent heat dissipation can prolong LED lifespan to 50,000 hours.
4. Flexible Installation

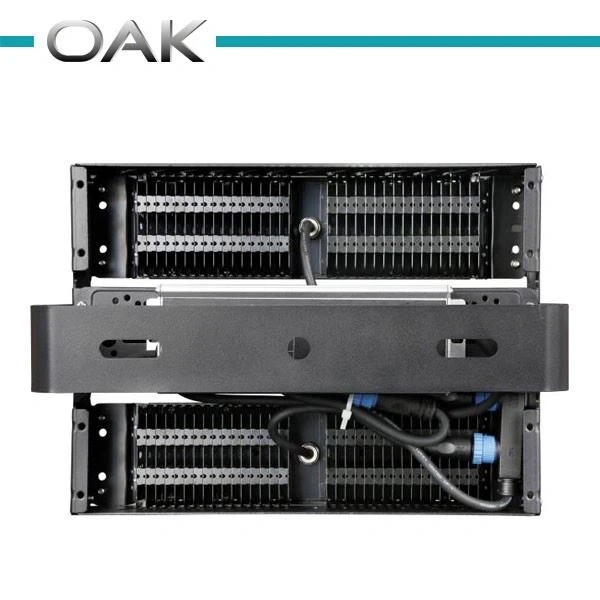

The LED flood light comes with adjustable metal bracket and side bracket accessories, it can be installed in the ceiling, walls, ground and other locations, by adjusting the different angles.
5. After-sales service
We have a professional customer service team to provide support.
If you encounter any problems, please contact us. We always pursue 100% customer satisfaction; and provide quality services and satisfactory solutions.

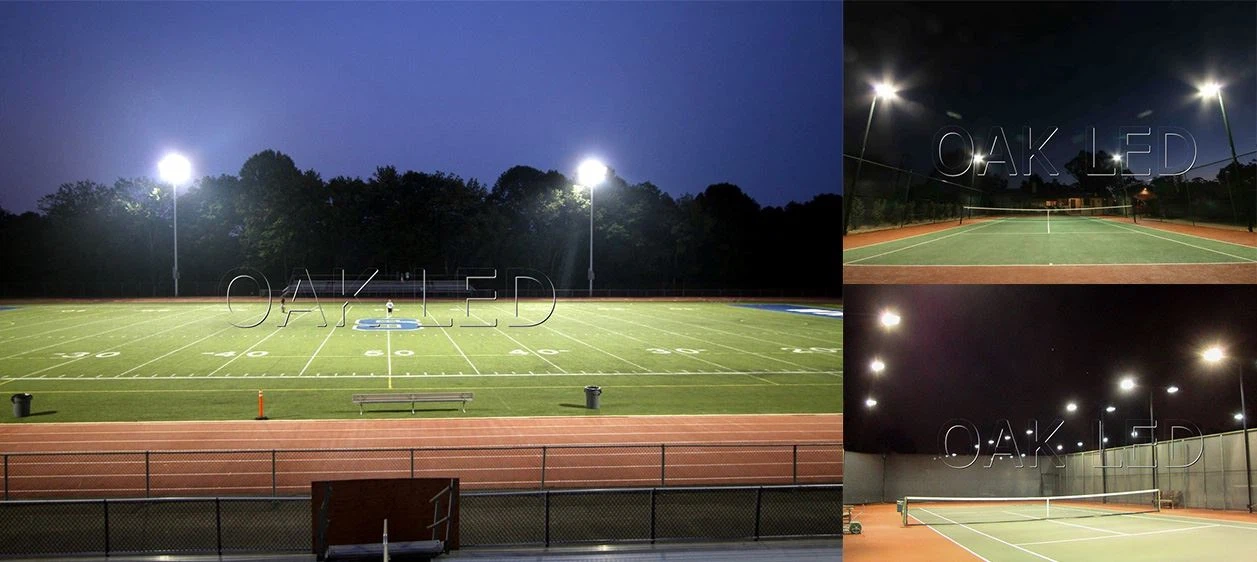

Project References
Difference Between Smd Led Chips And Cob Led Chips
1. Packaging method:
1) SMD packaging through the SMD form of multiple discrete devices pasted on the PCB board to form the LED application light source components, such practices exist point light, glare and ghosting problems.
2) COB refers to Chip-On-Board, the low power chip directly packaged on the aluminum substrate for fast heat dissipation, small chip area, high heat dissipation efficiency, low drive current. Thus has a low thermal resistance, high thermal conductivity of high heat dissipation.
Compared with ordinary SMD small power light source features: higher brightness, small thermal resistance (<6℃/W), smaller light decay, higher apparent finger, perfect light spot, long life.
2. Production process :
1) The system thermal resistance of traditional SMD package application is: chip - solid crystal adhesive - solder joint - solder paste - copper foil - insulation layer - aluminum.
2) The system thermal resistance of COB package is: chip - solid crystal adhesive - aluminum.
COB package in the production process and the traditional SMD production process is basically the same, in the solid crystal, welding line process and SMD package efficiency is basically equivalent, but in the dispensing, separation, spectroscopy, packaging, COB package efficiency is much higher than SMD products.
Traditional SMD package labor and manufacturing costs account for roughly 15% of the cost of materials, COB package labor and manufacturing costs account for roughly 10% of the cost of materials, using COB package, labor and manufacturing costs can save 5%.
COB package system thermal resistance is much lower than that of traditional SMD package system thermal resistance, so it can significantly improve the lifetime of LED.
Illuminate Your World with SMD LED Flood Lights: The Ultimate Outdoor Lighting Solution
When it emerges up large outdoor locations, nothing defeats the power and performance of the most recent technology in illumination innovation-- SMD LED Flood Lights. Suitable for business buildings, these flood lights are made to supply optimal illumination, improved toughness, and remarkable energy cost savings. Whether you are wanting to change your parking lot, upgrade your commercial premises, or just improve the safety and safety of your outdoor space, our SMD LED Flood Lights are the perfect solution.
Unrivaled Brightness and Efficiency.
Geared Up with Surface-Mounted Device (SMD) up to 210lm/w LEDs, our flood lights flaunt remarkable brightness while taking in minimal power. These commercial LED flood lights are crafted to supply ultra-bright lighting with amazing clearness, making certain that every edge of your exterior area is well-lit. The high lumen result paired with reduced electrical power makes them the best outdoor LED flood lights, offering much more light with less power, thus substantially lowering your electric expenses.
Durable and Weather-Resistant.
Our commercial outdoor LED flood lights are constructed to sustain the toughest weather with a durable die-cast light weight aluminum housing and a PC lens. Their water resistant construction makes sure reliable efficiency, making them the optimal waterproof LED flooding lights for lasting exterior use. Whether it's a torrential downpour or a sweltering summertime day, these flooding lights will remain to brighten your area easily.
Versatile Applications.
From commercial facilities and sporting activities fields to parking area and building facades, our SMD LED flooding lights are excellent for a variety of applications. They are particularly beneficial for:
Durable and Weather-Resistant.
Our commercial outdoor LED flood lights are constructed to sustain the toughest weather with a durable die-cast light weight aluminum housing and a PC lens. Their water resistant construction makes sure reliable efficiency, making them the optimal waterproof LED flooding lights for lasting exterior use. Whether it's a torrential downpour or a sweltering summertime day, these flooding lights will remain to brighten your area easily.
Versatile Applications.
From commercial facilities and sporting activities fields to parking area and building facades, our SMD LED flooding lights are excellent for a variety of applications. They are particularly beneficial for:
Business Residences:
Improve the exposure and safety and security of your business home, ensuring a well-lit setting for employees, consumers, and site visitors.
Improve the exposure and safety and security of your business home, ensuring a well-lit setting for employees, consumers, and site visitors.
Industrial Areas:
Boost the safety and performance of your commercial procedures by providing bright and trustworthy lights for packing docks, warehouses, and making systems.
Boost the safety and performance of your commercial procedures by providing bright and trustworthy lights for packing docks, warehouses, and making systems.
Public Spaces:
Create an inviting environment for parks, plazas, and public squares, making them much safer and much more enjoyable throughout nighttime hours.
Create an inviting environment for parks, plazas, and public squares, making them much safer and much more enjoyable throughout nighttime hours.
Residential Exteriors:
Increase the safety and security and visual charm of homes with top notch lighting for gardens, driveways, and building exteriors.
Easy Installment and Upkeep.
Our SMD LED flood lights are made for convenient installment and minimal upkeep. With an adjustable mounting bracket, you can conveniently route the light beam to the preferred area, making certain optimal insurance coverage. Plus, the long lifespan of LED innovation indicates fewer substitutes and lower maintenance prices gradually.
Eco-Friendly and Cost-Effective.
Selecting our commercial LED flood lights suggests committing to an eco-friendly and cost-effective illumination option. The energy-efficient SMD LEDs considerably reduce your carbon footprint by eating much less power while delivering superior lighting. Additionally, their long functional life means less bulbs wind up in land fills, adding to a more lasting setting. Our LED flood lights are also without hazardous materials such as mercury and lead, making them a more secure choice for your home and the earth.
Advanced Features for Superior Efficiency.
Increase the safety and security and visual charm of homes with top notch lighting for gardens, driveways, and building exteriors.
Easy Installment and Upkeep.
Our SMD LED flood lights are made for convenient installment and minimal upkeep. With an adjustable mounting bracket, you can conveniently route the light beam to the preferred area, making certain optimal insurance coverage. Plus, the long lifespan of LED innovation indicates fewer substitutes and lower maintenance prices gradually.
Eco-Friendly and Cost-Effective.
Selecting our commercial LED flood lights suggests committing to an eco-friendly and cost-effective illumination option. The energy-efficient SMD LEDs considerably reduce your carbon footprint by eating much less power while delivering superior lighting. Additionally, their long functional life means less bulbs wind up in land fills, adding to a more lasting setting. Our LED flood lights are also without hazardous materials such as mercury and lead, making them a more secure choice for your home and the earth.
Advanced Features for Superior Efficiency.
Our SMD LED flooding lights come loaded with innovative attributes to guarantee they satisfy all your illumination needs:.
Smart Control Options:
Incorporate with clever control systems for automated illumination routines, lowering abilities, and and remote access, allowing you to handle your lighting effortlessly.
Incorporate with clever control systems for automated illumination routines, lowering abilities, and and remote access, allowing you to handle your lighting effortlessly.
Motion Sensors:
Some versions consist of motion sensors that turn on the lights when activity is identified, providing an extra layer of protection and power efficiency.
Some versions consist of motion sensors that turn on the lights when activity is identified, providing an extra layer of protection and power efficiency.
Multiple Light Beam Angles:
Available in different beam of light angles to accommodate various lighting demands, from slim beams for concentrated lights to vast beam of lights for more comprehensive insurance coverage.
Available in different beam of light angles to accommodate various lighting demands, from slim beams for concentrated lights to vast beam of lights for more comprehensive insurance coverage.
Color Temperature Options:
Various temperature levels from 1700k to 10,000K.
Customer Satisfaction Guaranteed.
We pride ourselves on offering the best outdoor LED flood lights backed by extraordinary client service and support with 5 years warranty.
Various temperature levels from 1700k to 10,000K.
Customer Satisfaction Guaranteed.
We pride ourselves on offering the best outdoor LED flood lights backed by extraordinary client service and support with 5 years warranty.
