OAK-SPL640
640W LED Sports Light
SPECIFICATIONS
| LED Type | Original Cree LEDs (USA) | Power Supply | Meanwell HLG/ ELG |
| LED QTY | 64pcs | Input Voltage | AC90-305V / AC200-305V |
| System Efficacy | 170 lm/W | Power Frequency | 50~60Hz |
| Luminous Flux | 108,800 lm | Output Voltage | DC 36V |
| CCT | Typ. 2700-6500K | Output Current | 17.78A (Constant Current) |
| Beam Angle | 15, 25, 40, 60, 90, 120 degree | Power Efficiency | >95% |
| CRI | >80 | Power Factor | >0.95 |
| System Efficiency | >95% | Total Harmonic Distortion | <15% |
| Others & Certification | |||
| System Power Consumption | 640W | Storage Temperature | -40~+70℃ |
| Fixture Material | Die-cast Pure Aluminum | Operating Temperature | -40~+60℃ |
| Ingress Protection | IP66 | Operating Humidity | 15~90%RH |
| Luminaire N.W/G.W | 24kg / 26kg | Outlook Dimensions | 558mm Diameter |
| Life Span | >100,000Hrs | Export Wooden Size | 650x620x500mm |
| Optional Info. | |||
|
Installation Method: Pole Mounting ,304/316 SS Fixtures Color: Silver, Black, Golden, Customize color Dimming Control: DALI, DMX, PWM, Zigbee optional |
|||

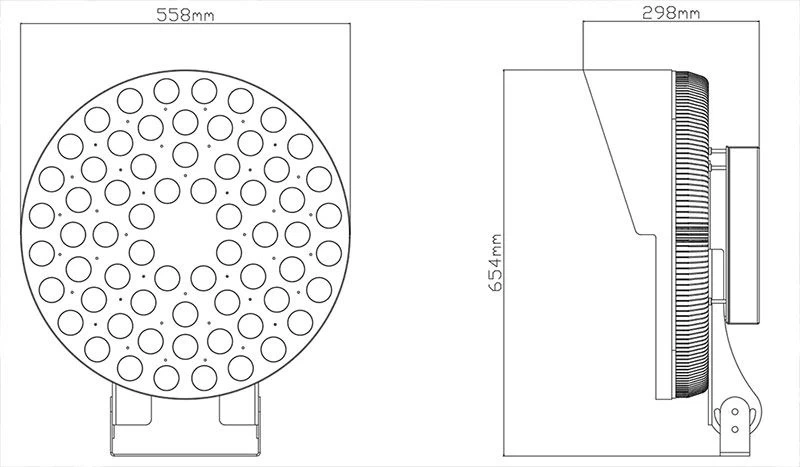

Dimensions:
Features:
~ Integrated die-cast aluminum with high thermal conductivity and high heat dissipation
~ Special fin structure design to increase heat dissipation area, thermal conductivity
~ Professional light visor, minimizes light spill
~ Maximum ground efficiency
Precise optical system maximizes the light reaching the ground
~ Flicker-free, CRI96 optional, lighting up objects in their true color, suitable for HD photography, widely used in sports fields
~ With COB chips and anti-glare system, glare rating value will be lower than traditional SMD light chips
~ Multiple beam angle options to meet different requirements
