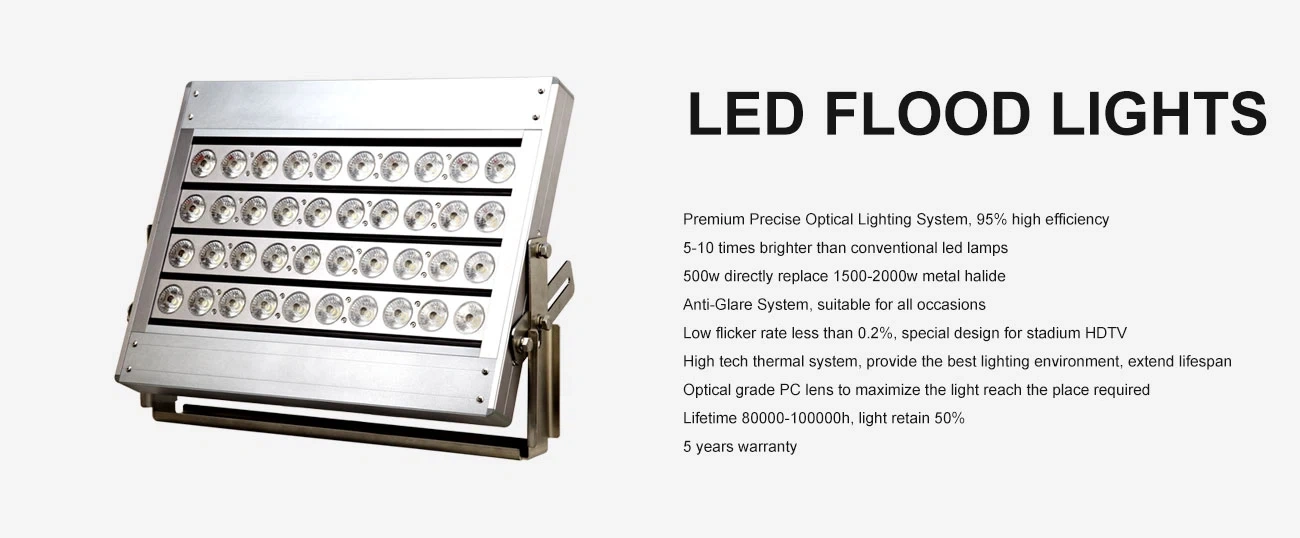

800W LED Floodlight
800W LED Flood Light with 5-10 times brighter than conventional led lamps.
500w directly replace 1500-2000w metal halide.
Premium Precise Optical Lighting System.
95% high efficiency.
Low flicker rate less than 0.2%, special design for stadium HDTV
OAK-FL-Smart-800W
How to design the thermal system is the key of high power led flood light.
The unique thermal system design of OAK LED Flood Lights depends on the following main aspects:
1. Adopting Cree COB chips from USA original, and the COB package of LEDs shortens the cooling channel, increases the cooling area and reduces the thermal resistance, thus improving the thermal performance of LEDs and extending the lifespan of LEDs.
2. Complying in the passive cooling principle, using high pure aluminum heat sink to make the special cooling channel design, transferring the heat quickly from different directions through air gaps.
3. Providing the customized lamp structural design to transfer the heat produced from the chips inside to the heat sinks directly, so ensuring that the LEDs working stably, extending the lifespan of LEDs and lowering the speed of light decay.
So this unique thermal system design can help our LED flood lights running in better environment and extending the lifespan over 100,000 hours.
| MN | Power (W) |
Size (mm) |
Efficiency |
Beam Angle |
Color |
Dimming |
| OAK-FL-100W-Smart | 100 | 318x255x70 | 170lm/w |
15, 25, 40, |
2700-6500K |
PWM |
| OAK-FL-150W-Smart | 150 | 318x320x70 | ||||
| OAK-FL-200W-Smart | 200 | 418x320x70 | ||||
| OAK-FL-300W-Smart | 300 | 468x436x70 | ||||
| OAK-FL-400W-Smart | 400 | 568x436x70 | ||||
| OAK-FL-500W-Smart | 500 | 568x501x70 | ||||
| OAK-FL-600W-Smart | 600 | 568x566x70 | ||||
| OAK-FL-720W-Smart | 720 | 668x566x70 | ||||
| OAK-FL-800W-Smart | 800 | 668x631x70 | ||||
| OAK-FL-1000W-Smart | 1000 | 718x696x70 |
Parameters
|
Model No. |
OAK-FL-Smart-800W |
|
Light Source |
Cree COB |
|
Driver |
Meanwell |
|
Power |
800w |
|
Luminous Efficiency |
170 lm/W |
|
Luminous Flux |
136,000 lm |
|
Input Voltage |
90~305V AC |
|
Beam Angle |
15° /25° /40° /60° /90° /120°optional |
|
Color Temperature |
1700~10,000K |
|
CRI |
≥80 |
|
IP Rating |
IP67 |
|
Lifespan |
>100,000h |
|
Power Factor |
≥0.95 |
|
Power Efficiency |
≥93% |
|
Power Frequency |
50~60HZ |
|
Working Temp. |
-40 ~ +55°C |
|
MH reference Replacement |
2000-4000W |
Surface Treatment

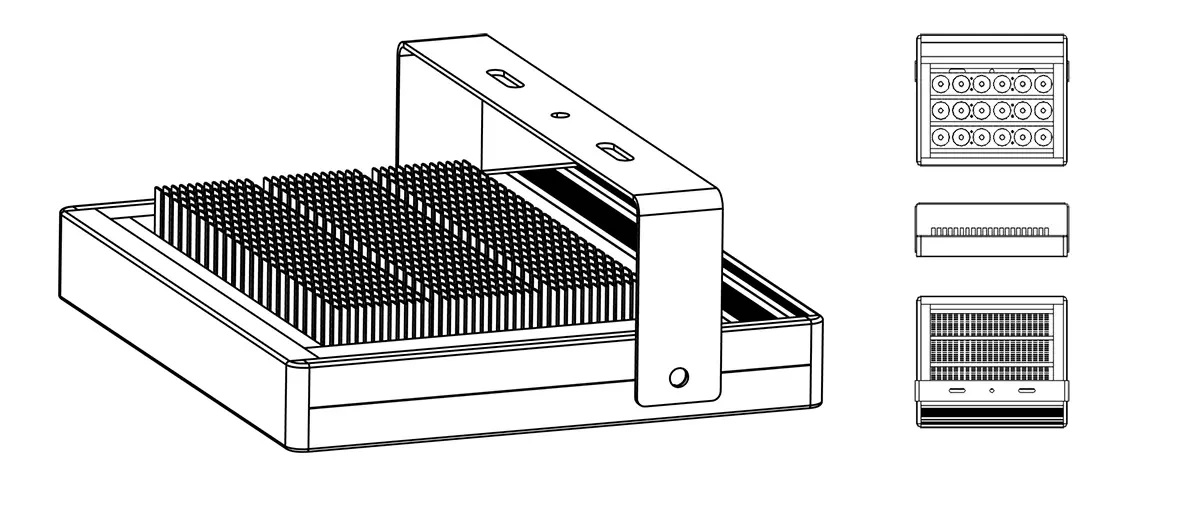

Special cooling channel
make sure the heat transfer to the air in different directions

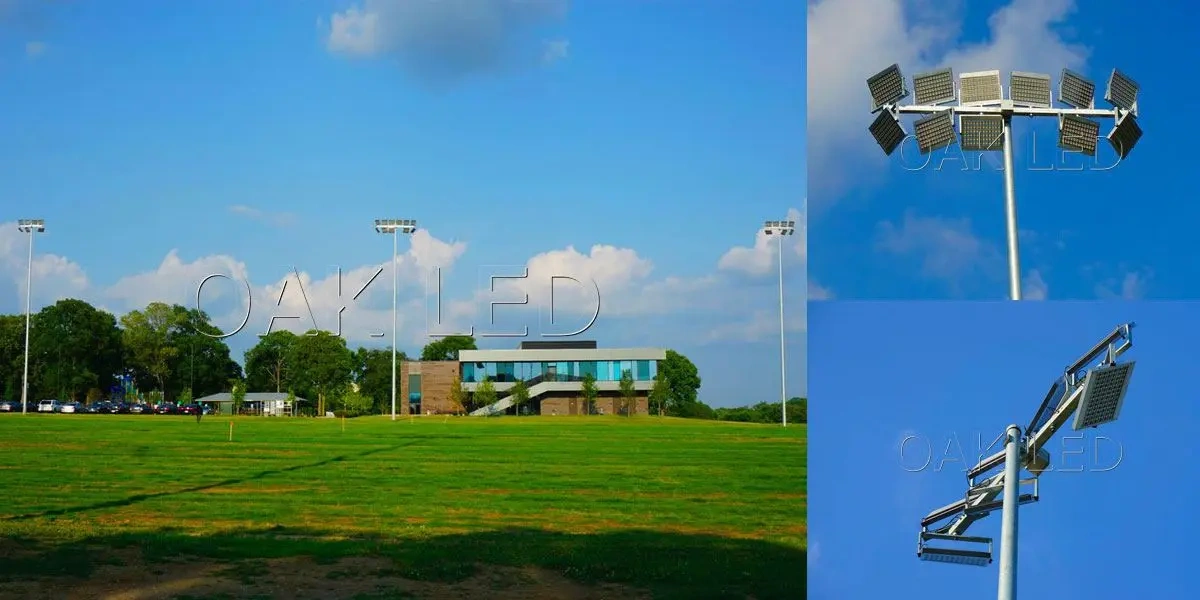

Project References
