720W LED Flood Light
720W LED Flood Light LED Flood light / LED Stadium light / LED Venue light.
Brightest LED lights in the world.
Premium Precise Optical Lighting System, 95% high efficiency.
LED Flood light / LED Stadium light / LED Arena light
OAK-FL-720W
Brightest LED lights in the world
Cree COB Chip from USA original, Meanwell power supply.
Premium Precise Optical Lighting System, 95% high efficiency.
5-10 times brighter than conventional led lamps.
500w directly replace 1500-2000w metal halide.
Anti-Glare System, suitable for all occasions.
Low flicker rate less than 0.2%, special design for stadium HDTV.
High tech thermal system, provide the best lighting environment, extend lifespan.
Optical grade PC lens to maximize the light reach the place required.
High & low temperature resistant, suitable for -40 to +60°C environment temperature.
Lifetime 80000-100000h, light retain 50%.
DALI, DMX, PWM dimming available.
5 years warranty.
Energy saving, environment-friendly, waste free, completely recyclable.
Anti-seismic, impact resistant.
| MN | Power (W) |
Size (mm) |
Efficiency |
Beam Angle |
Color |
Dimming |
| OAK-FL-100W-Smart | 100 | 318x255x70 | 170lm/w |
15, 25, 40, |
2700-6500K |
PWM |
| OAK-FL-150W-Smart | 150 | 318x320x70 | ||||
| OAK-FL-200W-Smart | 200 | 418x320x70 | ||||
| OAK-FL-300W-Smart | 300 | 468x436x70 | ||||
| OAK-FL-400W-Smart | 400 | 568x436x70 | ||||
| OAK-FL-500W-Smart | 500 | 568x501x70 | ||||
| OAK-FL-600W-Smart | 600 | 568x566x70 | ||||
| OAK-FL-720W-Smart | 720 | 668x566x70 | ||||
| OAK-FL-800W-Smart | 800 | 668x631x70 | ||||
| OAK-FL-1000W-Smart | 1000 | 718x696x70 |
Parameters
|
Model No. |
OAK-FL-Smart-720W |
|
Light Source |
Cree COB |
|
Driver |
Meanwell |
|
Power |
720w |
|
Luminous Efficiency |
170 lm/W |
|
Luminous Flux |
122,400 lm |
|
Input Voltage |
90~305V AC |
|
Beam Angle |
15° /25° /40° /60° /90° /120°optional |
|
Color Temperature |
1700~10,000K |
|
CRI |
≥80 |
|
IP Rating |
IP67 |
|
Lifespan |
>100,000h |
|
Power Factor |
≥0.95 |
|
Power Efficiency |
≥93% |
|
Power Frequency |
50~60HZ |
|
Working Temp. |
-40 ~ +55°C |
|
MH reference Replacement |
2000W |

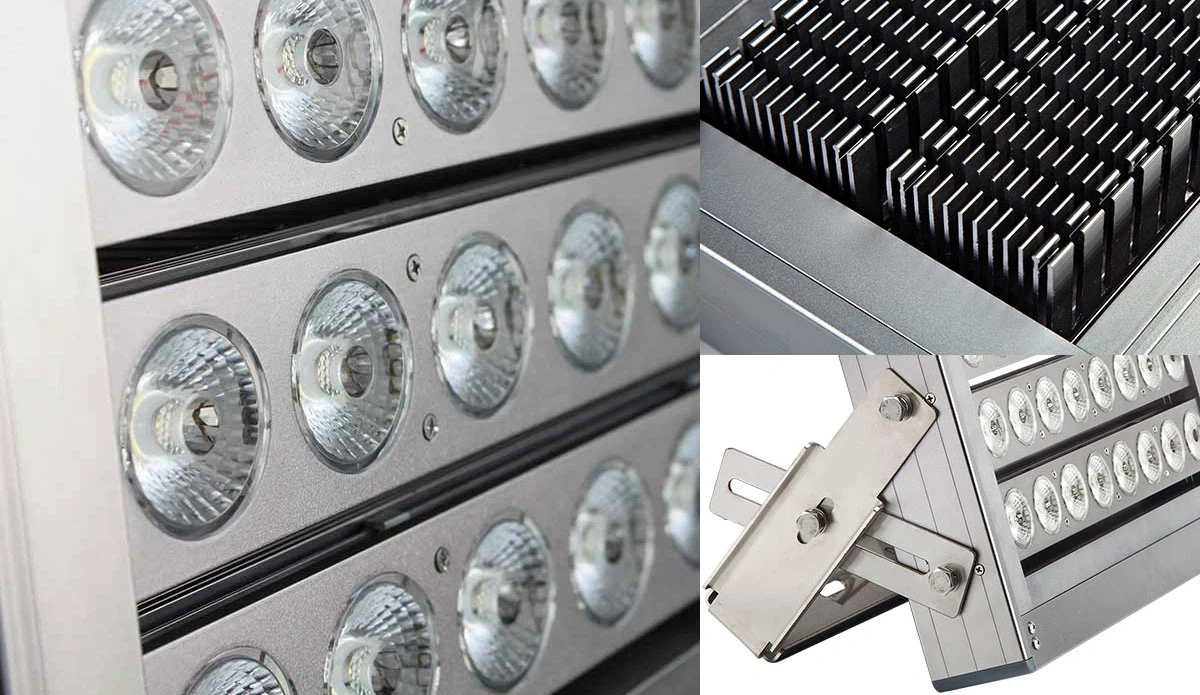

Surface Treatment
Special cooling channel
make sure the heat transfer to the air in different directions
