500W LED Floodlight
5-10 times brighter than conventional led lamps.
OAK LED 500w flood light with directly replace 1500-2000w metal halide.
Premium Precise Optical Lighting System. 95% high efficiency.
Low flicker rate less than 0.2%, special design for stadium HDTV.
OAK-FL-Smart-500W
500W LED flood lights
CREE COB + meanwell drivers
Flood light series light up the future of industry energy-saving lighting in world
This light save energy at least 70% compared to traditional lamp, and it also reduce maintenance cost
Flood light is combined with LED cutting-edge technology and unique optical design to maximize the light reaching to the ground
Adopt IP 67 waterproof design, suitable for outdoor use
Pure aluminum alloy lamp body, PC lens; solid and durable; corrosion-proof
High efficiency thermal management, LEDs and power supply work in a good environment temperature, and high stability of continuous operating
No flicker and glare, high CRI up to 96, novel design, easy to install and transport
| MN | Power (W) |
Size (mm) |
Efficiency |
Beam Angle |
Color |
Dimming |
| OAK-FL-100W-Smart | 100 | 318x255x70 | 170lm/w |
15, 25, 40, |
2700-6500K |
PWM |
| OAK-FL-150W-Smart | 150 | 318x320x70 | ||||
| OAK-FL-200W-Smart | 200 | 418x320x70 | ||||
| OAK-FL-300W-Smart | 300 | 468x436x70 | ||||
| OAK-FL-400W-Smart | 400 | 568x436x70 | ||||
| OAK-FL-500W-Smart | 500 | 568x501x70 | ||||
| OAK-FL-600W-Smart | 600 | 568x566x70 | ||||
| OAK-FL-720W-Smart | 720 | 668x566x70 | ||||
| OAK-FL-800W-Smart | 800 | 668x631x70 | ||||
| OAK-FL-1000W-Smart | 1000 | 718x696x70 |
Parameters
|
Model No. |
OAK-FL-Smart-500W |
|
Light Source |
Cree COB |
|
Driver |
Meanwell |
|
Power |
500w |
|
Luminous Efficiency |
170 lm/W |
|
Luminous Flux |
85,000 lm |
|
Input Voltage |
90~305V AC |
|
Beam Angle |
15° /25° /40° /60° /90° /120°optional |
|
Color Temperature |
1700~10,000K |
|
CRI |
≥80 |
|
IP Rating |
IP67 |
|
Lifespan |
>100,000h |
|
Power Factor |
≥0.95 |
|
Power Efficiency |
≥93% |
|
Power Frequency |
50~60HZ |
|
Working Temp. |
-40 ~ +60°C |
|
MH reference Replacement |
1000-2000W |

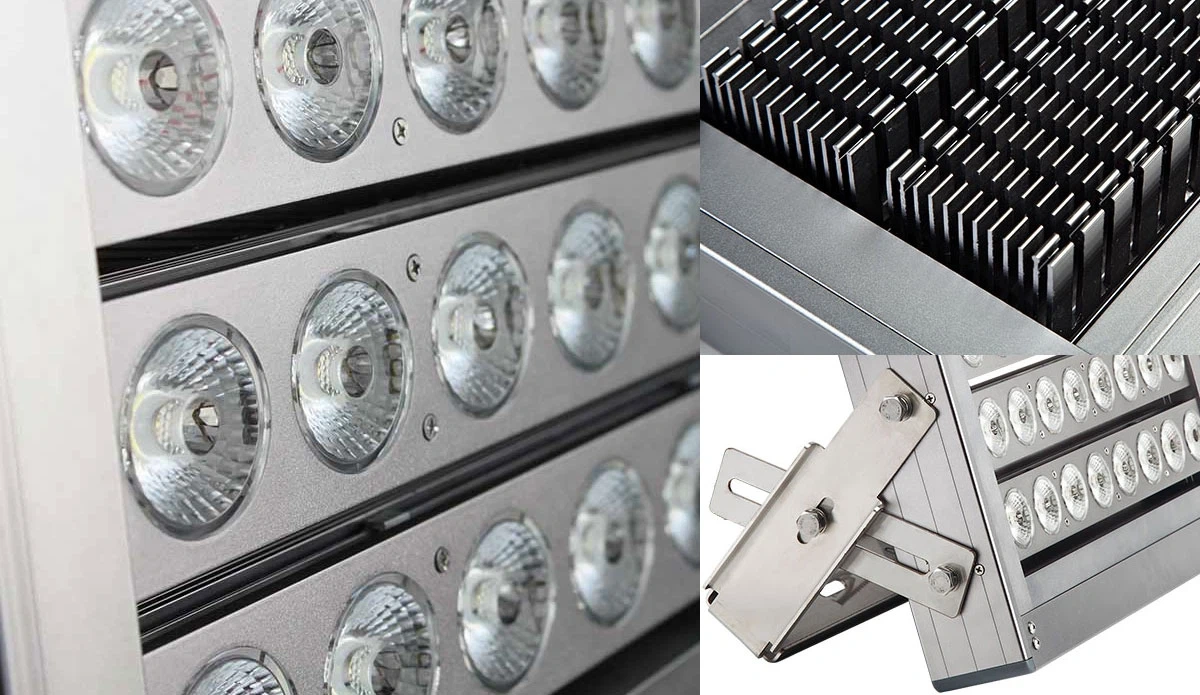

Surface Treatment
Special cooling channel
make sure the heat transfer to the air in different directions
Project References
Applications:Mainly applied in outdoor flood lighting, building decoration, industry, sports center, outdoor stadium, port, parking lot, and road.
