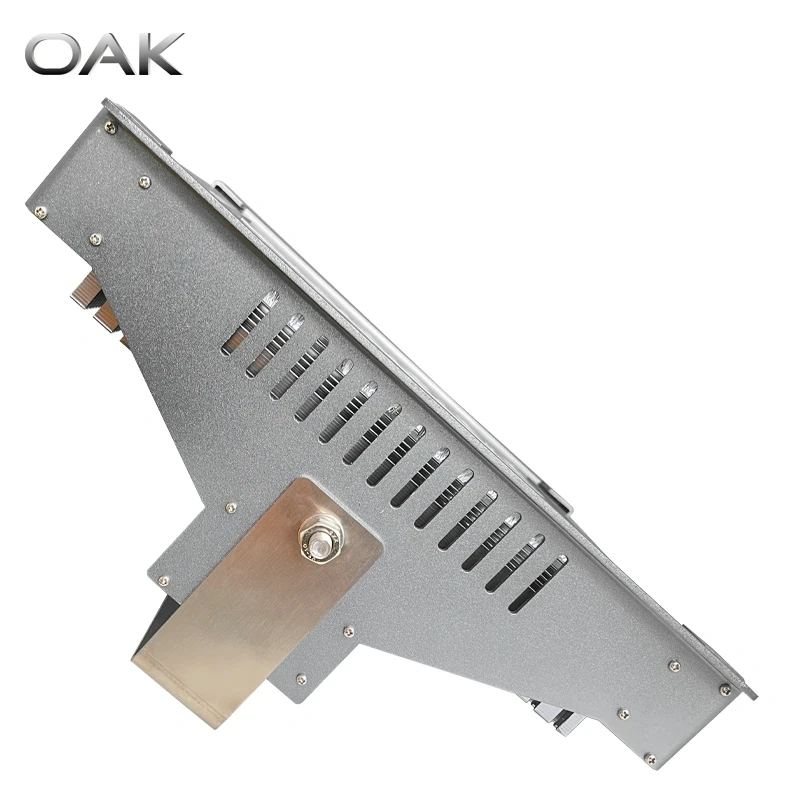

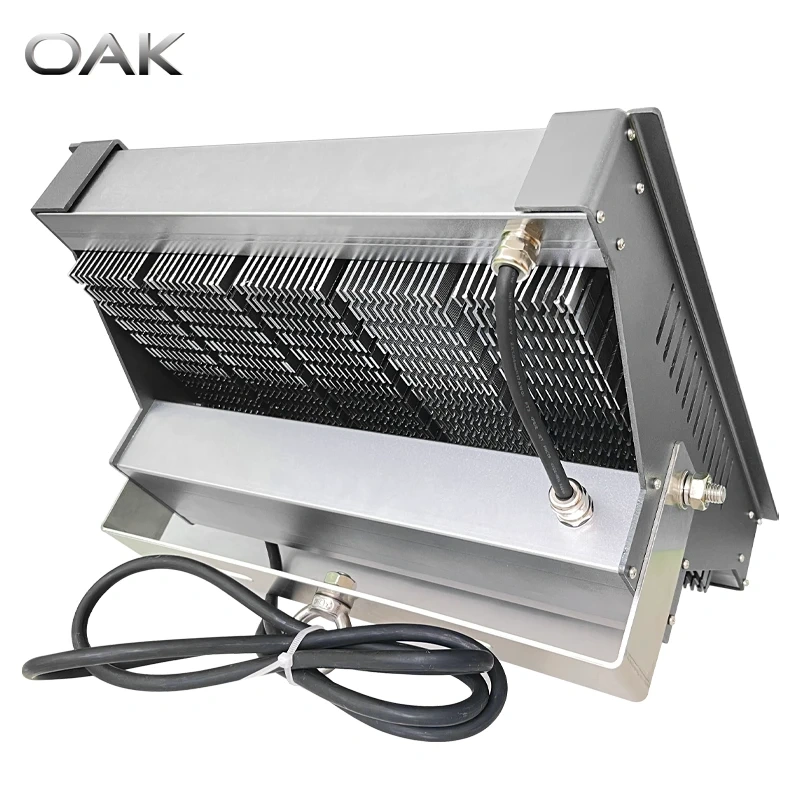

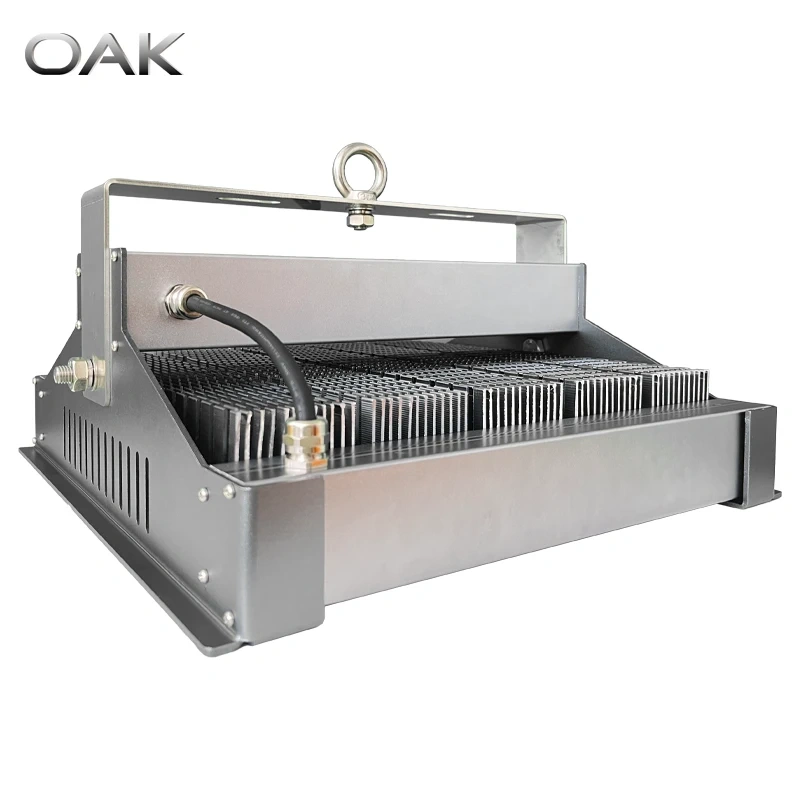

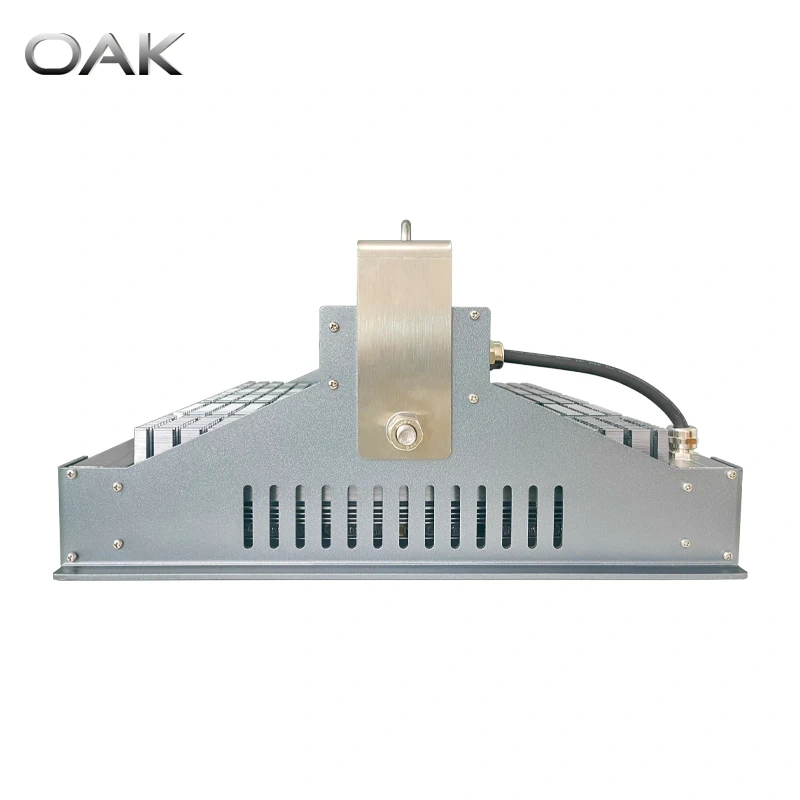

300W LED High Bay Light
300W LED High Bay light.
OAK-HBL300.
Brightest LED high bay lights in the world.
Premium Precise Optical Lighting System, 95% high efficiency.
UP to 60% energy saving compared with Metal Halide.
5-10 times brighter than conventional led lamps.

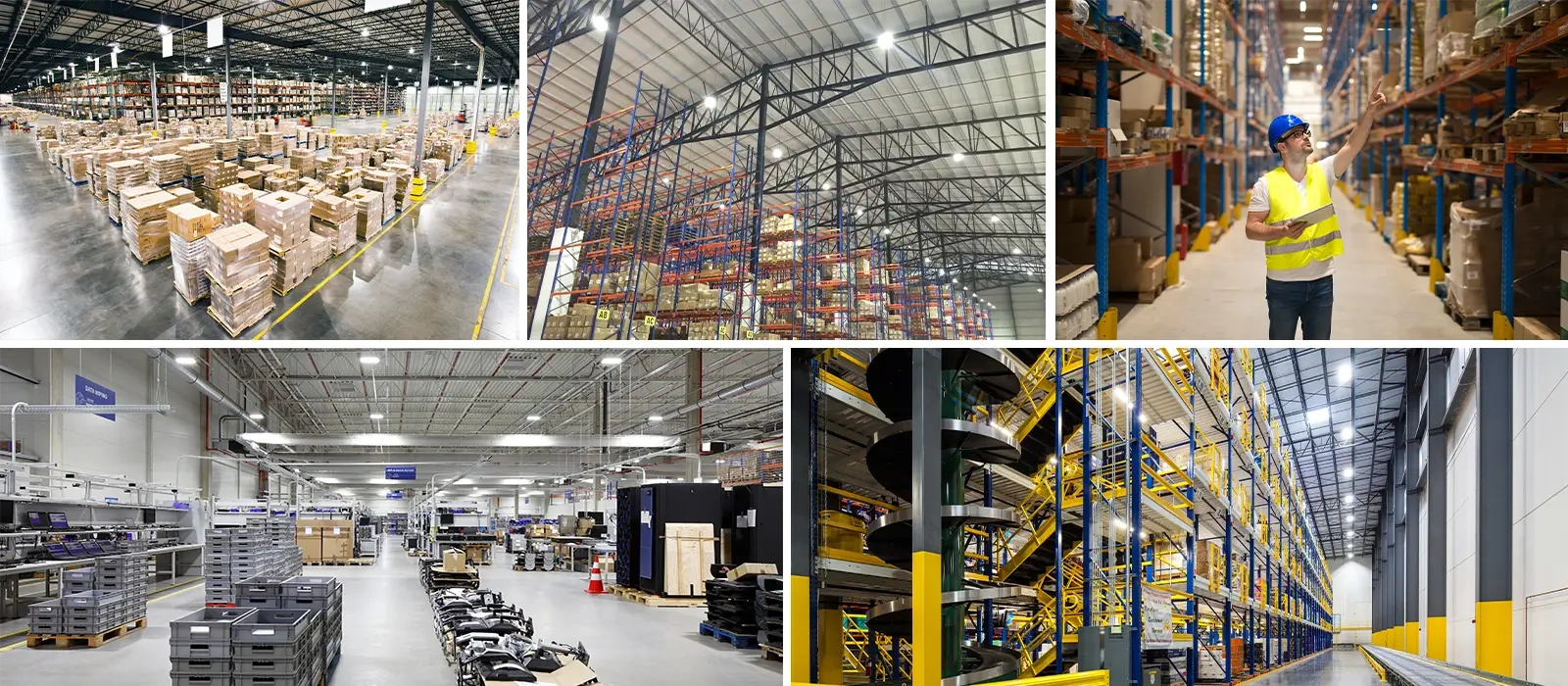

300W LED High Bay Light / Warehouse Lighting / Airport Lighting
Brightest 300W LED high bay light in the world
Premium Precise Optical Lighting System, 95% high efficiency
UP to 60% energy saving compared with Metal Halide .
5-10 times brighter than conventional led lamps
Dimming with DALI / PWM/ DMX system optional
Stable and durable, easy to install and maintenance.
More than 80000hrs lifespan, light retain 50%
High tech thermal system, provide the best lighting environment, extend lifespan
Optical grade PC lens to maximize the light reach the place required
Environmental proctection, no UV/ Hg and harmful substance.
High & low temperature resistant, suitable for -40 to +55°C environment temperature
5 years warranty
Specifications
| MN | Power (W) |
Size (mm) |
Efficiency |
Beam Angle |
Color |
Dimming |
| OAK-HBL90 | 90 | 213x235x171.5 | 170lm/w |
15, 25, 40, |
1700-10,000K |
0/1-10V |
| OAK-HBL120 | 120 | 213x300x171.5 | ||||
| OAK-HBL150 | 150 | 263x300x171.5 | ||||
| OAK-HBL200 | 200 | 313x300x171.5 | ||||
| OAK-HBL240 | 240 | 363x300x171.5 | ||||
| OAK-HBL300 | 300 | 363x365x171.5 | ||||
| OAK-HBL360 | 360 | 363x430x171.5 | ||||
| OAK-HBL480 | 480 | 413x430x171.5 | ||||
| OAK-HBL800 | 800 | 478x630x171.5 |
Parameters
|
Model No. |
OAK-HBL300 |
|
Light Source |
Brighelux / Cree |
|
Driver |
Meanwell |
|
Power |
300w |
|
Luminous Efficiency |
170 lm/W |
|
Luminous Flux |
51,000 lm |
|
Input Voltage |
90~305V AC |
|
Beam Angle |
15° /25° /40° /60° /90° /120° |
|
Color Temperature |
1700~10,000K |
|
CRI |
≥80 |
|
IP Rating |
IP66 |
|
Lifespan |
>100,000h |
|
Power Factor |
≥0.95 |
|
Power Efficiency |
≥93% |
|
Power Frequency |
50~60HZ |
|
Working Temp. |
-40 ~ +55°C |
|
MH reference Replacement |
1000-1500W |
